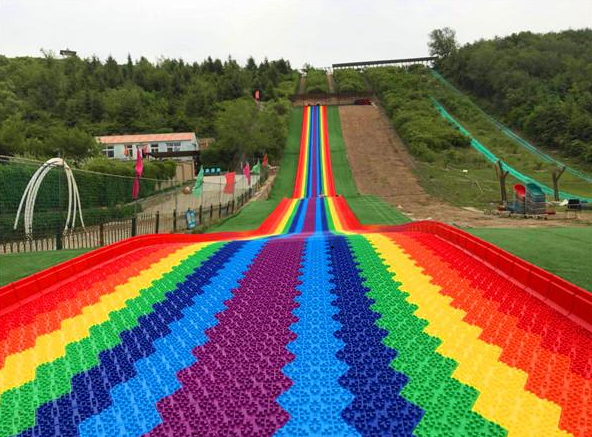

The dimensions and slope of Rainbow slides are highly flexible and can be fully customized to fit specific site conditions and operational needs. However, the industry has established standard ranges for reference:

Length: Slides typically range from 30 to 300 meters. The 100m–150m range is the sweet spot for most theme parks and resorts, as it delivers an exciting ride while keeping construction costs in check.

Width: Standard widths fall between 1.2m and 3.6m. Single-lane slides require a minimum width of 2 meters, while double-lane slides need at least 3.4 meters to comfortably accommodate side-by-side riding. For larger attractions looking to maximize throughput during peak hours, extra-wide slides of 8 to 10+ meters can be built to handle multiple riders or family groups.

Slope: The standard gradient ranges from 13° to 30°. For straight slides, we recommend an 18°–25° slope, whereas S-shaped curves perform best at 15°–20°. Slides should maintain a minimum gradient of 10° to ensure a smooth, safe glide.

Safety Features: Safety is non-negotiable. Every slide must end with a deceleration buffer zone of at least 20 meters. Additionally, both sides must be equipped with protective barriers or crash tubes standing 1.2m to 2.0m high.
